Cast Iron 3 Inch Electric Ball Valve Fixed Ball Float Valve For Water Tank
Cast Iron 3 Inch Electric Ball Valve Fixed Ball Float Valve For Water Tank
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE,CNAS,SIL
PRODUCT MODEL
EV-0000202
Trading Properties
MOQ
1pc
Unit Price
USD $100.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Week
Product Summary
3 Inch Cast Iron Fixed Ball Valve Electric Float Ball Valve for Water Tank Product Description: 3 Inch Cast Iron Electric Float Ball Valve for Water Tank/IP67/Fixed Ball Valve Description: Specification: Power supply AC220V Body size DN15-250 Medium Temp -80°C~160°C(no congelation.) Operating ...
Product Details
Highlight:
Cast Iron 3 Inch Electric Ball Valve
,Fixed Ball Float Valve For Water Tank
,Electric Ball Float Valve For Water Tank
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Acid, Alkali, Salt, Chlorine Gas, Steam, Source Water
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ASME
Size:
Dn15-250
HS Code:
8481804090
Product Description
3 Inch Cast Iron Fixed Ball Valve Electric Float Ball Valve for Water Tank
Product Description:
3 Inch Cast Iron Electric Float Ball Valve for Water Tank/IP67/Fixed Ball Valve
Description:
Specification:
| Power supply | AC220V |
| Body size | DN15-250 |
| Medium Temp | -80°C~160°C(no congelation.) |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | 4-20mA Signal input feedback, 0-90° gyration |
| Action time | 4~30S |
| Body connections | Flange |
| Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Sealed material | PTFE |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid |
The material of the main parts
Part name |
Body |
Bonnet |
Stuffing box |
Gland ring |
Seat |
Packing |
Spanner |
Material Trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
WCB |
Applicable channeling medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
Gas |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
|
Mixture of liquid and solid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |

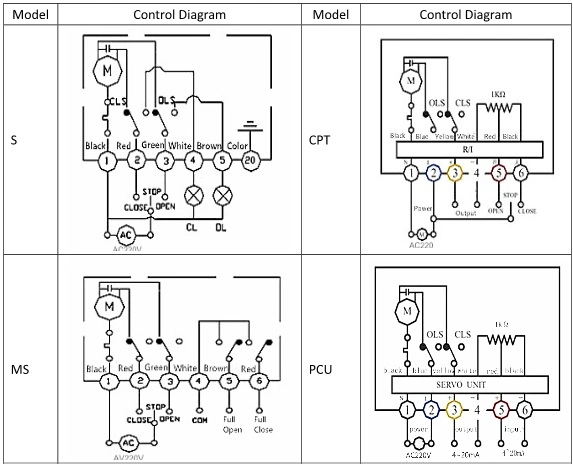

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
