Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS,SIL
Model Number: EV-0000206
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Water, Oil, Gas |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15-100 |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Water, Oil, Gas |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15-100 |
HS Code: |
8481804090 |

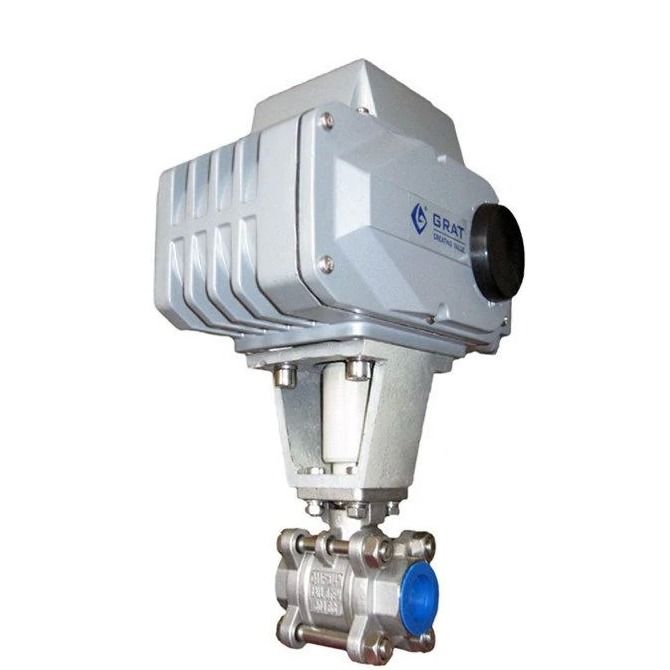

Grat Wholesale Stainless Steel Thread Connection Electric Mini Ball Valve
Product Description:
Grat Wholesale Stainless Steel Thread Connection Electric Mini Ball Valve/IP67/Fixed Ball Valve
Description:
Specification:
| Power supply | AC220V 50/60HZ |
| Body ratings | DN15-100 |
| Medium Temp | ≤220°C |
| Ambient Temp | ≤50°C |
| Operating pressure | PN16, PN25, PN40 |
| Action mode | Switch to cut off |
| Body connections | Flange type, connecting thread |
| Body material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Plug material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Leakage | Compliance with the standards ANSIB16.104 5 |
| Seal type | Two-sided sphere seal |
| Applicable medium | Water, oil, gas |
| Protection level | IP67 |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Manufacturing standards | JB/T8692-1998 |
Installation size drawing
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
