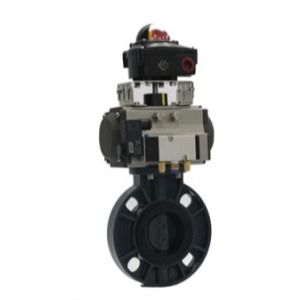

High Quality Factory Supply Agriculture Irrigation Motorized UPVC Butterfly Valve Dn63
Product Description:
Agriculture Irrigation Motorized UPVC Butterfly Valve/IP67/Soft Sealed
Description:
UPVC electric butterfly valve is suited to low pressure and room temperature services
to switch, control, and cut off various strong corrosive fluid mediums.
With lightweight and strong corrosion resistance, the body is widely applied in the piping
system of pure water and raw drinking water, drainage and sewage, brine and seawater,
acid-alkali and chemical solution.
Specification:
| Power supply | AC220V |
| Valve size | DN50-300 |
| Medium Temp | -15ºC ~ 60ºC(no congelation) |
| Ambient Temp | -25ºC ~ 55ºC |
| Body ratings | 1.0Mpa |
| Action mode | Switch to cut off,0 ~ 90°gyration |
| Action time | 4 1530 60S |
| Protector | Overheat protection |
| Body connections | Wafer, flange |
| Body material | UPVC |
| Seal material | PTFEEPDM |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Water, air, oil, corrosive chemical liquid |
| Protection level | IP67 |
| Installation mode | Install it in any angle(Prefer to horizontal or inclined installation to extend service life.) |
Installation Diagram
|
Valve size mm |
Size (mm) | ||||||||
| Length | D | D1-ANSI | D1-JIS | D1-DIN | H | n-d-ANSI | n-d-JIS | n-d-DIN | |
| 50 | 43 | 56.5 | 120.39 | 120 | 125 | 103 | 4-19 | 4-19 | 4-18 |
| 65 | 47.5 | 70 | 139.44 | 140 | 145 | 113 | 4-19 | 4-19 | 4-18 |
| 85 | 47.5 | 79 | 152.4 | 150 | 160 | 115 | 4-19 | 4-19 | 4-18 |
| 100 | 57.2 | 103 | 190.5 | 175 | 180 | 135 | 8-19 | 8-19 | 8-18 |
| 125 | 66 | 130 | 216 | 210 | 210 | 165 | 8-22 | 8-23 | 8-18 |
| 150 | 74 | 151 | 241.55 | 240 | 240 | 177 | 8-22 | 8-23 | 8-23 |
| 200 | 87.5 | 200 | 298.5 | 290 | 295 | 210 | 8-22 | 8-23 | 8-23 |
| 250 | 110 | 255 | 362 | 355 | 350 | 240 | 12-25 | 12-25 | 12-23 |
| 300 | 129 | 311 | 432 | 400 | 400 | 297 | 12-25 | 12-25 | 12-23 |
Note: Without standard accessories, above size is for references only, please consult with our technology department for the latest parameters due to product improvement and technology innovation.
Main properties specification
Valve size DN |
50-300(mm) |
|||
Body ratings |
PN (Mpa) |
0.6 |
1.0 |
1.6 |
Test properties pressure |
Strength test |
0.9 |
1.5 |
2.4 |
Seal test |
0.66 |
1.1 |
1.76 |
|
Air seal test |
0.6 |
0.6 |
0.6 |
|
Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
