Germany Standard PVC Electric Butterfly Valve For Industrial

Name: Germany Standard PVC Electric Butterfly Valve For Industrial
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EB-000032
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE、CNAS

Model Number: EB-000032

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PVC Electric Butterfly Valve, Germany Standard PVC Electric Butterfly Valve


Brand Name:	GRAT	Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China	Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box	Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Driving Mode:	Electric	Connection Form:	Wafer
Seal Form:	Force Sealed	Work Pressure:	Low Pressure (Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed	Valve Stem:	Normal
Standard:	ISO	Size:	Dn50~300
Dead Zone:	Less Than 0.2%	Structure:	Centre Sealing
Working Temperature:	Normal Temperature (-40°C	Valve Body:	Sheet Metal
Application:	Ndustrial Usage, Water Industrial Usage, Household Usage	Modulation Accuracy:	Less Than 0.3%
HS Code:	8481804090

Brand Name:	GRAT
Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China
Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Driving Mode:	Electric
Connection Form:	Wafer
Seal Form:	Force Sealed
Work Pressure:	Low Pressure (Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed
Valve Stem:	Normal
Standard:	ISO
Size:	Dn50~300
Dead Zone:	Less Than 0.2%
Structure:	Centre Sealing
Working Temperature:	Normal Temperature (-40°C
Valve Body:	Sheet Metal
Application:	Ndustrial Usage, Water Industrial Usage, Household Usage
Modulation Accuracy:	Less Than 0.3%
HS Code:	8481804090

Product Description

Wholesale Price Germany Standard PVC Electric Butterfly Valve

Product Description:

Wafer PVC Plastic Electric Motor Operated Butterfly Valve/IP67/Soft Sealed

Description:

UPVC electric butterfly valve is suited to low pressure and room temperature services to switch, control,

and cut off various strong corrosive fluid mediums.With lightweight and strong corrosion resistance, the

body is widely applied in the piping system of pure water and raw drinking water, drainage and sewage,

brine and seawater, acid-alkali and chemical solution.

Specification:

Body ratings	PN1.0/PN1.6Mpa
Body size	DN40-DN800
Seal material	EPDMPTFE
Stem seal	NBRHNBR
Body material	UPVC
Disc material	UPVC
Body connections	Wafer
Flange	Special flange for butterfly valve
Power supply	AC220V 50HZ
Control signal	Switch actionmodulation action 4~20mA 0~5V
Output signal	Switch position indicationpassive contact feedbackfeedback 0-1KΩ4~20mA 0~5V
Operating pressure	PN1.6Mpa
Medium Temp	Below120 Celsius degree(The higher level of temperature resistance is prepared)
Ambient Temp	Below 50 Celsius degree
Flow coefficient(CV)	Please download the data on our website for reference. (Custom flow coefficient depends on the customer's requirement. )
Applicable medium	Water, oil, gas, corrosive medium

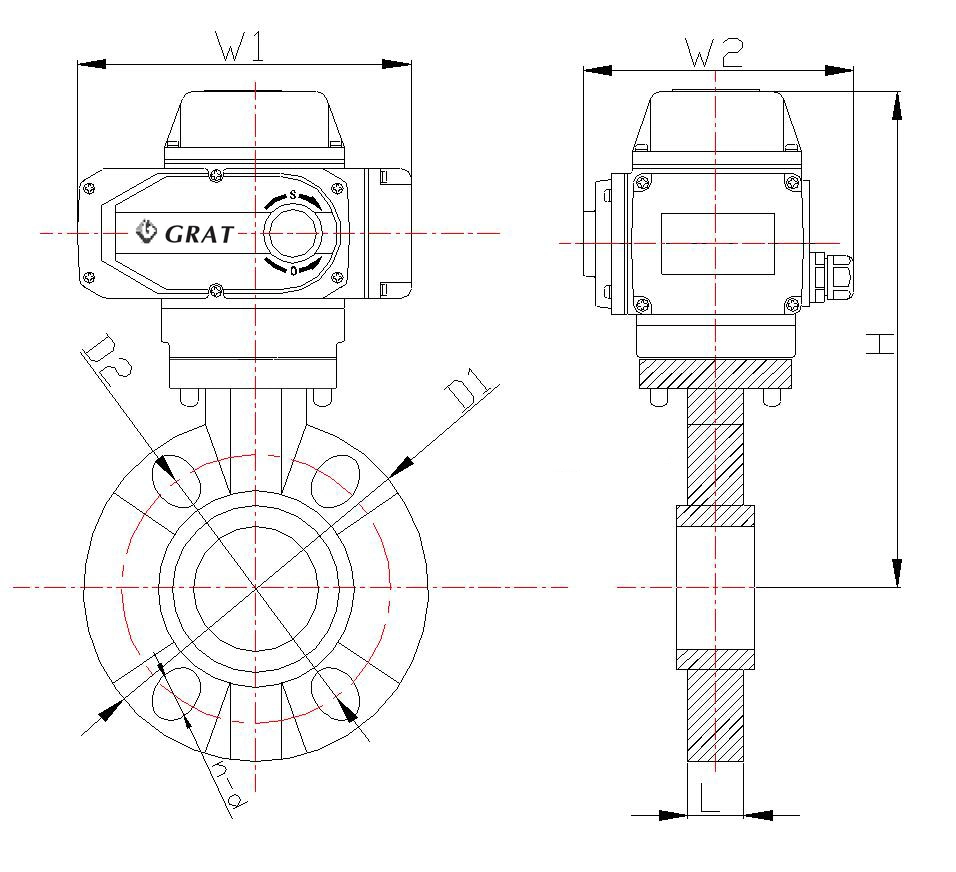

Installation Diagram Germany Standard PVC Electric Butterfly Valve For Industrial 1

(DN)	D1	D2	L	H	W1	W2	n-d
40	150	105	39	250	167	138	4-18
50	160	120	40	290	195	144	4-18
65	185	145	46	320	195	144	4-18
80	195	150	46	330	195	144	4-18
100	215	175	54	350	195	144	8-18
125	250	210	70	385	195	144	8-18
150	285	240	74	420	195	144	8-23
200	299	260	85	453	254	183	8-23
250	362	280	90	485	254	183	12-23
300	432	311	96	522	254	183	12-23

Main properties specification of UPVC electric butterfly valve

Valve size DN	50-300(mm)
Body ratings	PN (Mpa)	0.6	1.0	1.6
Test properties pressure	Strength test	0.9	1.5	2.4
	Seal test	0.66	1.1	1.76
	Air seal test	0.6	0.6	0.6

The implementation standards of the electric butterfly valve

Manufacturing standards	GB/T 122387-89
Flange standards	GB9113-2000,GB17241.6-1998
Structure length standards	GB12221-89
Inspection standards	GB/T 13927-92

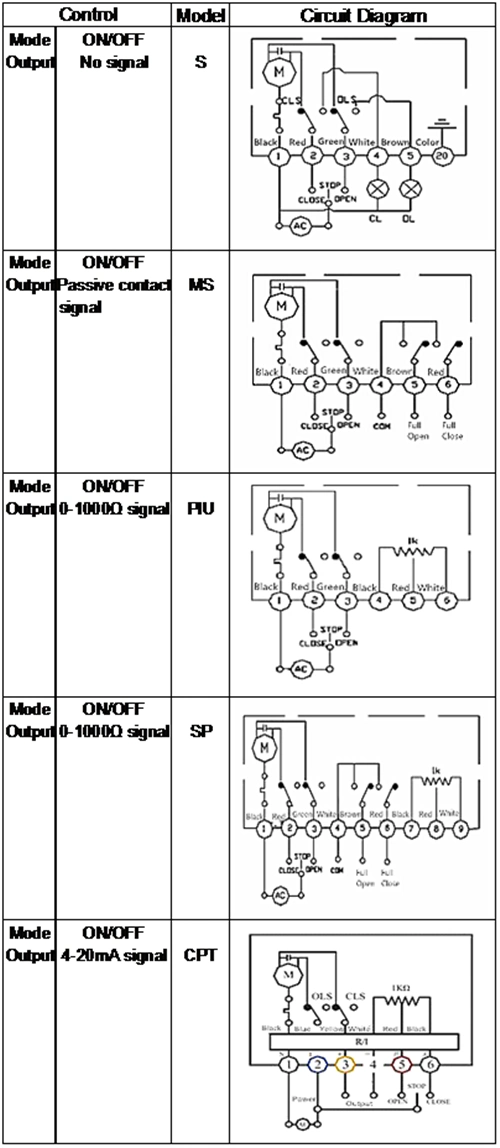

Control Diagram

Germany Standard PVC Electric Butterfly Valve For Industrial 2

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
