Electric Stainless Steel Ventilation Butterfly Valve for Environmental Engineering
Product Description:
Electric Stainless Steel Ventilation Butterfly Valve /IP68
Description:
Electric cast steel butterfly valve is a gas modulation device & a two-way switch device, and is
suitable to ventilation and dust removing pipeline in metallurgy, mineral, cement, chemical-engineering,
power generation, industrial furnace and so on.
Specification:
| Power supply | AC220V 50/60HZ |
| Operating temperature | 0-450 Celsius degree (Optional) |
| Imput signal | 4-20mA |
| Output signal | 4-20mA |
| Body connections | Wafer /Flange(Optional) |
| Flow characteristics | Approximate EQ% |
| Body material | A3 Steel, Heat-resistance steel |
| Disc material | A3, Heat-resistant steel, SUS304 Stainless steel, SUS316 Stainless steel |
| Seal type | Open type, back-seated type (ultra high temperature application), sealed oblique plate type (room temperature application). |
| Valve size | DN100~DN2000 |
| Body ratings | 0.1~0.6MPa |
| Test pressure | Sealed 0.15Mpa; Body 0.11Mpa |
| Applicable temperature | < 200 Celsius degree Special: < 450 Celsius degree |
| Applicable medium | Smoke, air, gas |
| Manufacturing standards | JB/T8692-1998 |

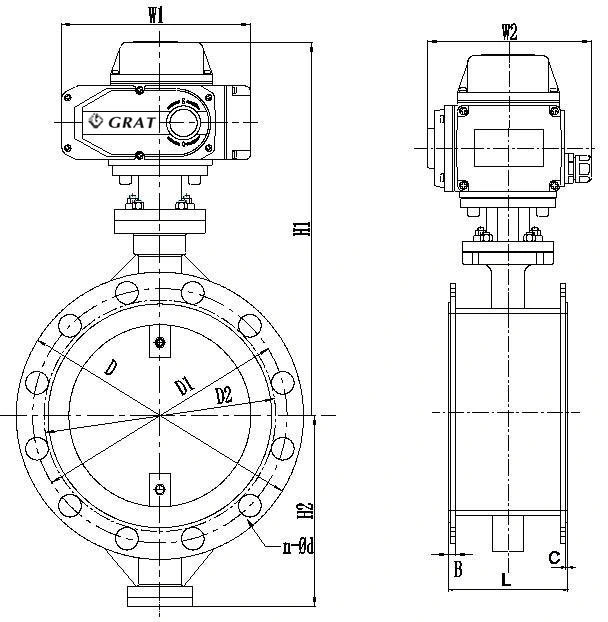

Installation size drawing
|
Specification (mm) |
D |
D1 |
D2 |
A |
H |
L |
B |
C |
n-d |
Weight (kg) |
|
100 |
205 |
170 |
145 |
382 |
166 |
120 |
14 |
3 |
4-φ18 |
10 |
|
125 |
235 |
200 |
175 |
404 |
177 |
120 |
14 |
3 |
8-φ18 |
12 |
|
150 |
260 |
225 |
200 |
430 |
190 |
120 |
16 |
3 |
8-φ18 |
14 |
|
200 |
315 |
280 |
255 |
530 |
240 |
180 |
18 |
3 |
8-φ18 |
29 |
|
250 |
370 |
335 |
310 |
580 |
264 |
180 |
22 |
3 |
12-φ18 |
31 |
|
300 |
435 |
395 |
362 |
630 |
290 |
180 |
22 |
4 |
12-φ23 |
34 |
|
350 |
485 |
445 |
412 |
1029 |
286 |
180 |
22 |
4 |
12-φ23 |
162 |
|
400 |
535 |
495 |
462 |
1079 |
311 |
180 |
22 |
4 |
16-φ23 |
168 |
|
450 |
590 |
550 |
518 |
1131 |
336 |
180 |
24 |
4 |
16-φ23 |
177 |
|
500 |
640 |
600 |
568 |
1181 |
361 |
180 |
24 |
4 |
16-φ23 |
190 |
|
600 |
755 |
705 |
670 |
1289 |
411 |
180 |
24 |
5 |
20-φ26 |
213 |
|
700 |
860 |
810 |
775 |
1346 |
466 |
270 |
28 |
5 |
24-φ26 |
276 |
|
800 |
975 |
920 |
880 |
1453 |
516 |
270 |
28 |
5 |
24-φ30 |
304 |
|
900 |
1075 |
1020 |
980 |
1526 |
566 |
270 |
28 |
5 |
24-φ30 |
327 |
|
1000 |
1175 |
1120 |
1080 |
1626 |
616 |
270 |
28 |
5 |
28-φ30 |
349 |
|
1200 |
1375 |
1320 |
1280 |
1853 |
716 |
270 |
28 |
5 |
32-φ30 |
394 |
|
1300 |
1475 |
1420 |
1380 |
2000 |
770 |
320 |
32 |
5 |
32-φ30 |
564 |
|
1400 |
1575 |
1520 |
1480 |
2100 |
820 |
320 |
32 |
5 |
36-φ30 |
644 |
|
1500 |
1690 |
1630 |
1590 |
2208 |
866 |
320 |
32 |
5 |
36-φ30 |
695 |
|
1600 |
1785 |
1730 |
1690 |
2305 |
920 |
320 |
32 |
5 |
40-φ30 |
744 |
|
1800 |
1985 |
1930 |
1890 |
2505 |
1020 |
320 |
34 |
5 |
44-φ30 |
875 |
|
2000 |
2185 |
2130 |
2090 |
2705 |
1120 |
320 |
34 |
5 |
48-φ30 |
984 |
The material of the main parts
|
Part name |
Material |
|
Body |
Q235-B, 20, 20g etc. |
|
Disc |
|
|
Rotatable shaft |
45, 40Cr etc. |
|
Packing |
YS250F etc. |
|
Handle |
KTH33008 |
The compliancestandards of the product
|
Design and manufacturing |
GB/T122381989,API609 |
|
Check and test |
GB/T139271992,API598 |
|
Side flange connections |
GB9115.88,GB9113.3 ~5-88,ASME B16.5CL.150,CL.300 and ASME B16.47CL.150. |
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
