Home > products > Compact Actuator > IoT Transparent/Clear UPVC Electric Valve

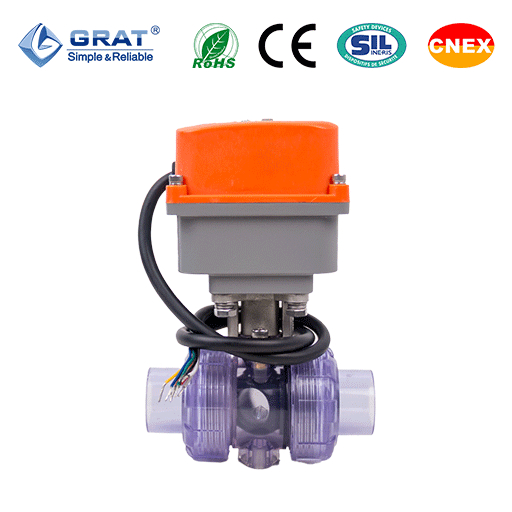

IoT Transparent/Clear UPVC Electric Valve

Name: IoT Transparent/Clear UPVC Electric Valve
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EK-20
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP66,CCC, ISO, CE,CNAS,SIL

Model Number: EK-20

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $150.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C,T/T,D/P,PayPal,Western Union

Supply Ability: 1000PCS/Week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                clear UPVC electric valve, IoT transparent electric valve, compact actuator UPVC valve


Brand Name:	GRAT	Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China	Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box	Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Type:	On/Off	Power Supply:	AC220V/DC24V
Ambient Temp:	-30ºC~60ºC	Application:	Food, Environmental Protection, Paper-making, Chemical Engineering, And Power
Action Time:	15S - 25S	Communication Protocol:	Modbus
Torque:	20NM	Size:	DN20 ( Up To DN25 )
Speed Regulation Mode:	PWM	Position Display:	OLED
Backlash:	0.5%	Dead:	0.5%
Feedback:	0.5%

Brand Name:	GRAT
Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China
Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Type:	On/Off
Power Supply:	AC220V/DC24V
Ambient Temp:	-30ºC~60ºC
Application:	Food, Environmental Protection, Paper-making, Chemical Engineering, And Power
Action Time:	15S - 25S
Communication Protocol:	Modbus
Torque:	20NM
Size:	DN20 ( Up To DN25 )
Speed Regulation Mode:	PWM
Position Display:	OLED
Backlash:	0.5%
Dead:	0.5%
Feedback:	0.5%

Product Description

IoT Transparent/Clear UPVC Electric Valve

Product Description

The Transparent/Clear UPVC Electric Valve stands out as a versatile and reliable component in fluid control systems, leveraging the unique properties of unplasticized polyvinyl chloride (UPVC) combined with enhanced transparency. Its clear structure allows for real-time visual monitoring of fluid flow, making it an ideal choice in applications where process visibility is critical—such as in water treatment plants, pharmaceutical production lines, and food and beverage processing. Operators can easily observe fluid clarity, detect blockages, or verify flow rates without disassembling the system, significantly reducing maintenance time and operational disruptions.

Features

Low power consumption and high efficiency: It only requires 10W of power, saving energy costs while maintaining efficient and stable operation.
Smooth speed regulation: Adopting PWM stepless speed regulation ensures stable actuator operation and more precise control.
High-performance motor: The built-in brushless motor with overload protection is stable, reliable, and has a long service life.
Real-time parameter display: The OLED displays status and parameter information in Chinese or English, providing real-time feedback and fault alarm information.
Precise control: Adjustable range from 30% to 100% with 0.5% control accuracy, meeting diverse control requirements.
Multiple feedback methods: Supports 4-20mA/0-10V/1-5V feedback methods for accurate control.

Basic Parameters

Nominal Bore (DN)	DN15～DN40
Operating Voltage	AC220V, DC24V
Medium Temperature	-15℃～60℃
Nominal Pressure	PN1.0～1.6MPa
Flow Characteristic	Quick opening

Physical Specifications

Connection Type	Union, Flange
Valve Body Materials	UPVC, CPCV, PVC
Valve Core Materials	UPVC, CPCV, PVC
Ball Valve Seal	PTFE, PPL, etc.
Packing Material	Graphite, PTFE
Actuator Seal	Viton (FKM)
Actuator Material	Cast aluminum alloy

Suitable Media

Water
Acids
Alkalis
Food-grade fluids
Industrial waste liquids
Pharmaceutical process fluids

Standards Compliance

Design & Manufacturing	GB12237-2007, API 6D
Product Inspection & Testing	API 598

Circuit Wiring Diagram

DC 24V

AC 220V

Circuit Diagram

Packing & Shipping

Packing: Inner with bubble wrap, outer with cardboard box and wooden case.
Transportation: By sea, by air, by train.

If you have other requirements, please feel free to tell us.
