Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation

Name: Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EV-0000276
Price: 240.00 USD
Availability: InStock

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: CCC, ISO, CE, TUV

Model Number: EV-0000276

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $80.00-400.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Trunnion Ball Valve, Trunnion Ball Valve V Type


Brand Name:	GRAT	Minimum Order Quantity:	1 Pc
Delivery Time:	3 Working Days	Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water	Material:	Stainless Steel
Connection Form:	Flange	Driving Mode:	Electric
Nominal Pressure:	ANSI CLASS 150-900	Channel:	Straight Through Type
Type:	Fixed Ball Valve	Temperature:	Normal Temperature
Application:	Industrial Usage, Water Industrial Usage	Medium:	Acid, Alkali, Salt, Chlorine Gas, Steam, Source Water
Explosion Grade:	Exd II Bt4	Input Signal:	4-20mA
Output Signal:	4-20mA	Structure:	Fixed Ball Valve
Function:	Bypass-Valve	Standard:	ASME
Size:	DN15-250	Voltage:	AC220V, AC380V, DC24V
Place Of Origin:	Wuhan, Hubei, China	Packaging Details:	Carton/Wooden Box
HS Code:	8481804090

Brand Name:	GRAT
Minimum Order Quantity:	1 Pc
Delivery Time:	3 Working Days
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water
Material:	Stainless Steel
Connection Form:	Flange
Driving Mode:	Electric
Nominal Pressure:	ANSI CLASS 150-900
Channel:	Straight Through Type
Type:	Fixed Ball Valve
Temperature:	Normal Temperature
Application:	Industrial Usage, Water Industrial Usage
Medium:	Acid, Alkali, Salt, Chlorine Gas, Steam, Source Water
Explosion Grade:	Exd II Bt4
Input Signal:	4-20mA
Output Signal:	4-20mA
Structure:	Fixed Ball Valve
Function:	Bypass-Valve
Standard:	ASME
Size:	DN15-250
Voltage:	AC220V, AC380V, DC24V
Place Of Origin:	Wuhan, Hubei, China
Packaging Details:	Carton/Wooden Box
HS Code:	8481804090

Product Description

V Type Stainless Steel Electric Trunion Flange Ball Valve for Corrosive Medium Regulation

Product Description:

V Type Electric Trunion Flange Ball Valve for Corrosive Medium Regulation/Stainless Steel/PTFE

Description:
Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation 0

Specification:

Power supply	AC220V
Body size	DN15-250
Medium Temp	-80°C~160°C(no congelation.)
Operating pressure	PN1.0~2.5(MPa)
Action mode	4-20mA Signal input feedback, 0-90° gyration
Action time	4~30S
Body connections	Flange
Body material	WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material	PTFE
Actuator material	Casting aluminum alloy
Applicable medium	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid.

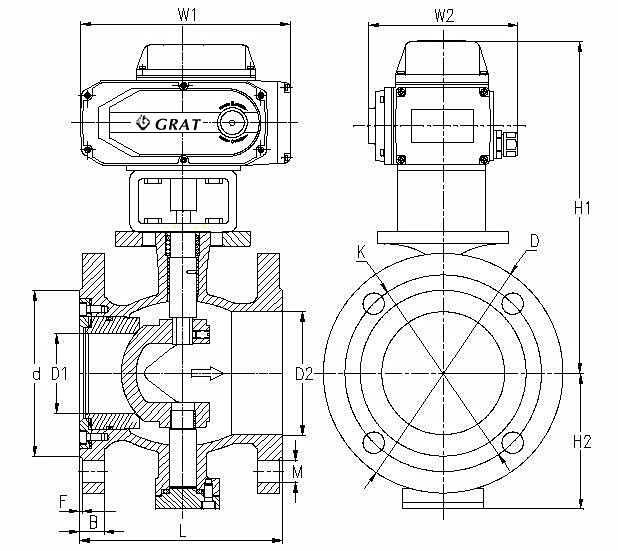

Installation size figure

Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation 1

DN(mm)	D1	D2	d	K	D	M	B	F	L	H1	H2	W1	W2	Weight kg
15	15	28	45	65	95	4-Φ14	14	2	102	290	55	196	145
20	15	28	55	75	105	4-Φ14	14	2	102	300	60	196	145
25	20	40	66	85	115	4-Φ14	14	2	102	310	65	196	145
32	25	46	78	100	135	4-Φ18	16	2	114	320	75	196	145
40	32	54	85	110	145	4-Φ18	16	2	114	330	80	196	145
50	40	65	100	125	160	4-Φ18	16	2	124	340	85	196	145
65	50	80	120	145	180	4-Φ18	18	2	145	350	100	196	145
80	65	100	135	160	195	8-Φ18	20	2	165	360	105	196	145
100	80	110	155	180	215	8-Φ18	20	2	194	420	115	196	145
125	100	135	185	210	245	8-Φ18	22	3	210	430	130	255	184
150	125	165	210	240	280	8-Φ23	24	3	229	450	150	255	184
200	160	205	265	295	335	12-Φ23	26	3	243	480	175	255	184
250	210	260	320	355	405	12-Φ26	30	3	297	520	220	255	184
300	250	322	375	410	460	12-Φ26	30	3	340	600	250	255	184
350	300	365	435	470	520	16-Φ26	34	3	422	630	280	255	184

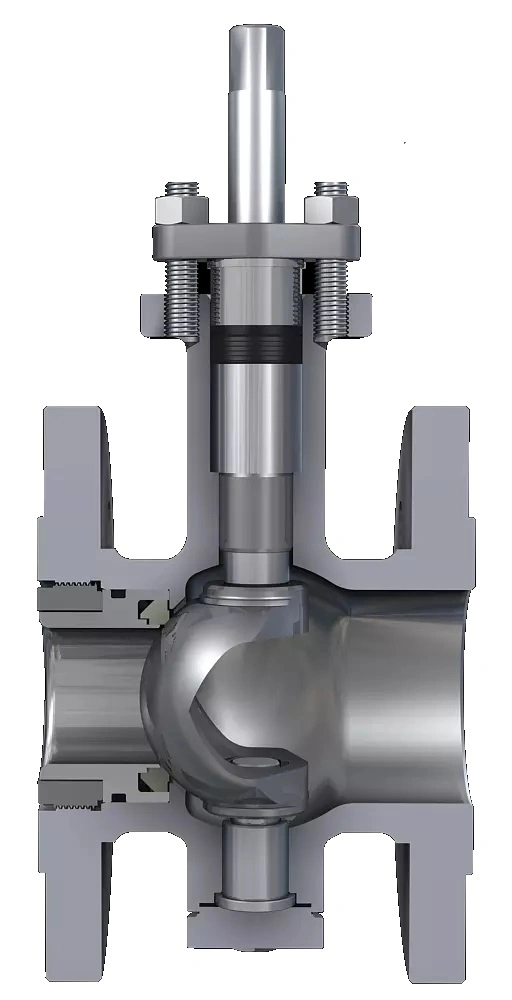

The material of the main parts
Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation 2

The material of the main parts

Part name

Body

Bonnet

Stuffing box

Gland ring

Seat

Packing

Spanner

Material

trademark

WCB

ZG1CrM0

1Cr18Ni9Ti

WCB

ZG1CrM0

1Cr18Ni9Ti

WCB

40Cr

1Cr18Ni9Ti

WCB

ZG1CrM0

1Cr18Ni9Ti

FEP

WCB

Applicable leading medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited	Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited
Mixture of liquid and solid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Control Diagram
Stainless Steel Electric Trunnion Ball Valve V Type For Corrosive Medium Regulation 3

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signa

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
