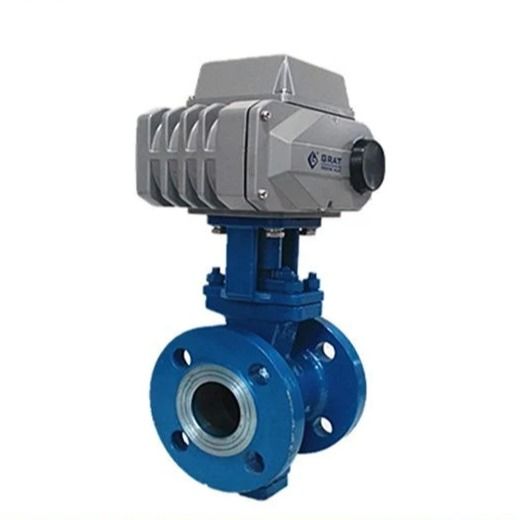

High Quality Electric Motorized Dn100 4 Inch Cast Steel Ball Valve
Product Description:
High Quality Electric Motorized Dn100 4 Inch Cast Steel Ball Valve/IP67/Fixed Ball Valve
Description:
This electric control valve is a device to regulate and cut off the industrial medium flow with the high requirement of abrasion resistance and self-cleaning in the absence of air supply.(mine pulp, paper pulp)
Specification:
| Valve size | DN15-DN350((Please contact us for the detailed data of the larger diameter valve) |
| Body rating | PN1.6~6.4MPa, |
| End connection | Wafer,Flange |
| Seal type | Metal seat |
| Action time | 15~120S(0-90°) |
| Power supply | AC220V,AC 380V, DC 24V |
| Input signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Temp. | ≤350ºC |
| Ambient temp. | -30~60ºC |
| Flow coefficient(CV): | Please download the data on our website for reference.(Custom flow coefficient depends on the customer's requirement.) |
| Applicable medium | Mine pulp, coal pulp, paper pulp, water, oil, and gas. |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Body material | WCB, SS304, SS316, SS316L |
| Seat material | SS304, SS316, SS316L |
| Trim material | SS304, SS316, SS316L |
| Manufacturing standard | GB/T 122387-89 |
| Flange standard | GB9113-2000,GB17241.6-1998 |
| Structure standard | GB12221-89 |
| Inspection standard | GB/T 13927-92 |
Installation size figure
| DN(mm) | D1 | D2 | d | K | D | M | B | F | L | H1 | H2 | W1 | W2 | Weight kg |
| 15 | 15 | 28 | 45 | 65 | 95 | 4-Φ14 | 14 | 2 | 102 | 290 | 55 | 196 | 145 | |
| 20 | 15 | 28 | 55 | 75 | 105 | 4-Φ14 | 14 | 2 | 102 | 300 | 60 | 196 | 145 | |
| 25 | 20 | 40 | 66 | 85 | 115 | 4-Φ14 | 14 | 2 | 102 | 310 | 65 | 196 | 145 | |
| 32 | 25 | 46 | 78 | 100 | 135 | 4-Φ18 | 16 | 2 | 114 | 320 | 75 | 196 | 145 | |
| 40 | 32 | 54 | 85 | 110 | 145 | 4-Φ18 | 16 | 2 | 114 | 330 | 80 | 196 | 145 | |
| 50 | 40 | 65 | 100 | 125 | 160 | 4-Φ18 | 16 | 2 | 124 | 340 | 85 | 196 | 145 | |
| 65 | 50 | 80 | 120 | 145 | 180 | 4-Φ18 | 18 | 2 | 145 | 350 | 100 | 196 | 145 | |
| 80 | 65 | 100 | 135 | 160 | 195 | 8-Φ18 | 20 | 2 | 165 | 360 | 105 | 196 | 145 | |
| 100 | 80 | 110 | 155 | 180 | 215 | 8-Φ18 | 20 | 2 | 194 | 420 | 115 | 196 | 145 | |
| 125 | 100 | 135 | 185 | 210 | 245 | 8-Φ18 | 22 | 3 | 210 | 430 | 130 | 255 | 184 | |
| 150 | 125 | 165 | 210 | 240 | 280 | 8-Φ23 | 24 | 3 | 229 | 450 | 150 | 255 | 184 | |
| 200 | 160 | 205 | 265 | 295 | 335 | 12-Φ23 | 26 | 3 | 243 | 480 | 175 | 255 | 184 | |
| 250 | 210 | 260 | 320 | 355 | 405 | 12-Φ26 | 30 | 3 | 297 | 520 | 220 | 255 | 184 | |
| 300 | 250 | 322 | 375 | 410 | 460 | 12-Φ26 | 30 | 3 | 340 | 600 | 250 | 255 | 184 | |
| 350 | 300 | 365 | 435 | 470 | 520 | 16-Φ26 | 34 | 3 | 422 | 630 | 280 | 255 | 184 |
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
