Electric Stainless Steel Thread Connection Straight Through Type Mini Ball Valve
Product Description:
Electric Stainless Steel Mini Ball Valve /IP67/Fixed Ball Valve
Description:
With the performance of small flow regulating and high precision control, electric mini ball valve can be
controlled by control signal and single phase power to satisfy various regulating requirement for tiny
flow in pressure, flow, temperature, and the level of liquid etc.
Specification:
Valve size | DN15-DN250 |
Body ratings | PN1.6MPa |
Body connections | Wafer,Flange |
Seat type | Stainless steel moveable metal seal,PTFE soft seal |
Action time | 30 S(0-90°) |
Power supply | AC220V |
Control signal | 4~20mA 0~5V |
Output signal | 4~20mA 0~5V |
Operating pressure | PN1.6Mpa PN2.5Mpa |
Medium Temp | ≤350°C |
Ambient Temp | ≤50°C |
Flow coefficient(CV): | Please download the data on our website for reference (Custom flow coefficient depends on the customer's requirement.) |
Applicable medium | Mine pulp, coal pulp, paper pulp, water, oil, gas |
Dead zone | 0.5% |
Repetition error | 0.5% |
Body material | SUS304 SUS316 WCB |

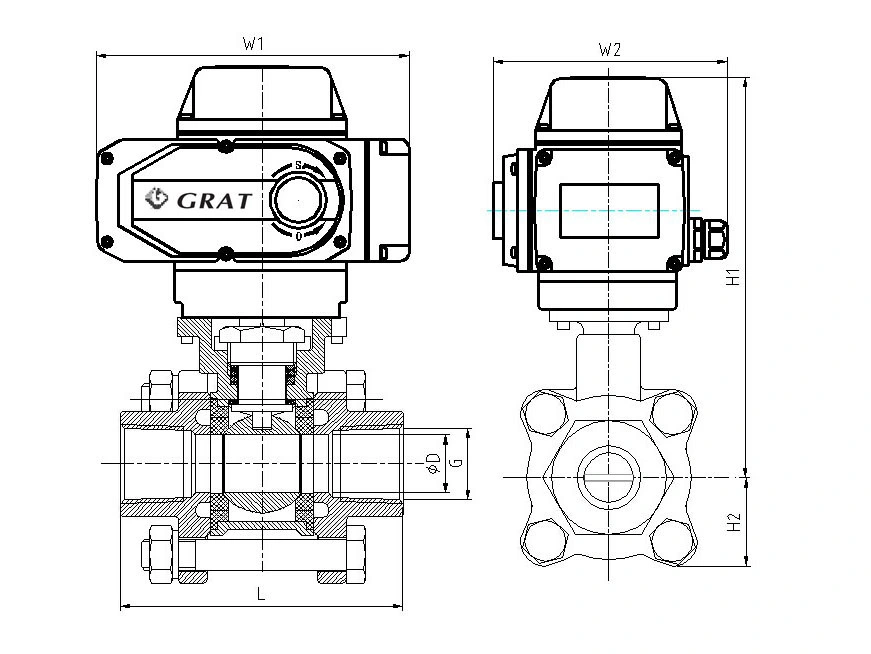

Figure and connection size
Valve size DN(mm) |
A |
φd |
H1 |
H2 |
H |
F |
15 | 62 | 54 | 74 | 75 | 390 | 210 |
20 | 62 | 54 | 74 | 75 | 390 | 210 |
25 | 62 | 54 | 74 | 75 | 390 | 210 |
32 | 62 | 78 | 80 | 75 | 400 | 210 |
40 | 62 | 82 | 85 | 75 | 405 | 210 |
50 | 75 | 100 | 87 | 95 | 430 | 210 |
65 | 80 | 120 | 105 | 115 | 460 | 210 |
80 | 100 | 131 | 115 | 125 | 520 | 270 |
100 | 115 | 158 | 125 | 125 | 530 | 270 |
125 | 130 | 180 | 140 | 155 | 570 | 270 |
150 | 160 | 216 | 153 | 165 | 600 | 270 |
200 | 200 | 260 | 200 | 195 | 680 | 270 |
250 | 240 | 325 | 225 | 225 | 730 | 270 |
The material of standard structure
Part name | Material |
Body | Carbon steel ASTM A216 WCC |
Body lining | high-chromium steel ASTM A532 Grade III Type A |
"V" ball | high-chromium steel ASTM A532 Grade III Type A |
Seal ring | high-chromium steel ASTM A532 Grade III Type A |
Fixed seal ring | Carbon steel ASTM A105 |
Bearing guard | high-chromium steel ASTM A532 Grade III Type A |
Bearing | 44oC58Rc |
Driving shaft | 17-4PH Cond.H1025 |
Driven shaft | 17-4PH Cond.H1025 |
Pin | Carbon steel, zincification |
Gasket | Graphite stainless steel wire |
Packing | PTFE, filling carbon |
Stuffing box ring and guard | 316 SST |
Bolt | SA-193-B7 |
Nut | SA-194-2H |
Fixed ring bolt and lock | 316 SST |
(optional)Seal ring lining | PSZ Ceramic |
"V" ball(optional) | PSZ Ceramic |
Maximum allowable leakage
Valve size DN(mm) | Metal seat | Soft seat |
15 | 1.1ml/min | 0.12ml/min |
20 | 1.5ml/min | 0.16ml/min |
25 | 2.0ml/min | 0.20ml/min |
32 | 2.4ml/min | 0.24ml/min |
40 | 3.0ml/min | 0.30ml/min |
50 | 3.8ml/min | 0.38ml/min |
65 | 5.2ml/min | 0.52ml/min |
80 | 6.2ml/min | 0.62ml/min |
100 | 7.6ml/min | 0.76ml/min |
125 | 9.6ml/min | 0.96ml/min |
150 | 12.0ml/min | 1.20ml/min |
200 | 15.4ml/min | 1.54ml/min |
250 | 19.2ml/min | 1.92ml/min |

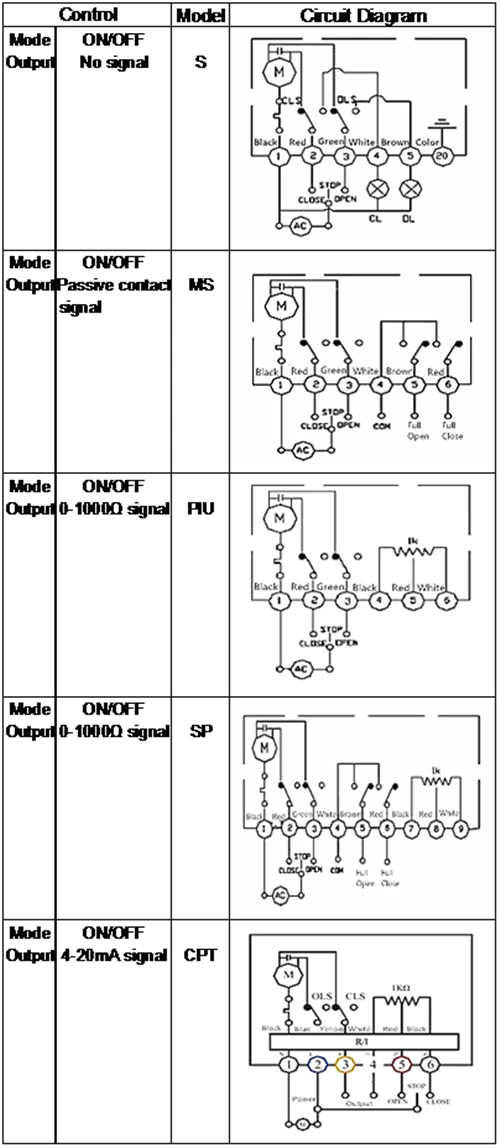

Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
